What Is Structural Health Monitoring?
Every bridge, building, or dam carries an invisible load — years of stress, vibration, and environmental exposure slowly wear on even the strongest structures. The question isn’t whether these forces exist — it’s whether you can see the warning signs early enough to prevent a failure.
That’s exactly what structural health monitoring (SHM) is designed to do.
By continuously collecting data on the physical condition of infrastructure, SHM allows engineers to detect small changes long before they become serious problems. In a world of aging assets and growing climate and seismic risks, these systems are becoming a critical tool for cities, utilities, and private infrastructure owners.
Key Sensors & Technologies
Types of Sensors Used

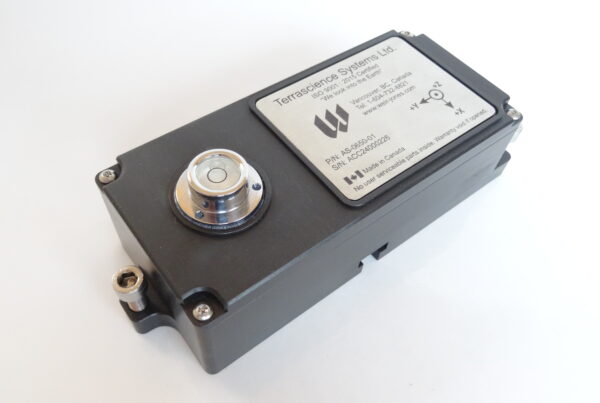

- Accelerometers: Detect vibrations, oscillations, and sudden movements, especially useful for seismic activity or heavy traffic loads.
- Strain Gauges: Measure tiny elongations or compressions in materials, ideal for tracking fatigue in steel, concrete, or composite materials.
- Displacement Sensors: Monitor lateral shifts, settlement, or tilting over time.
- Fiber Optic Sensors: Provide distributed measurements across long distances, particularly useful for large bridges or tunnels.
- Tilt Meters: Detect angular movements that may signal foundation or substructure shifts.
- Acoustic Emission Sensors: Capture micro-cracks or fracture noises inside materials before visible cracks appear.
How the System Works
Structural health monitoring systems operate around-the-clock, capturing data at high frequencies and transmitting it to processing centers.
- Baseline Models: Initial data collection establishes what “normal” behavior looks like for a structure.
- Deviation Detection: Ongoing monitoring flags shifts from that baseline — early warning for potential problems.
- Predictive Maintenance: Data trends allow engineers to schedule inspections or repairs before failure occurs.
- Advanced Data Analysis: Increasingly, AI and machine learning algorithms are used to process massive data sets, improving accuracy in predicting potential structural risks.
These systems can be fully integrated into digital asset management platforms like Weir-Jones’ ADIS, giving infrastructure operators complete visibility over time.
Monitoring for Dams, Bridges & Buildings

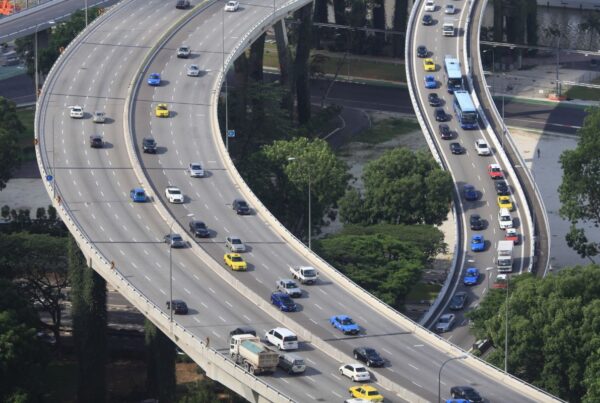

Bridges
Bridges endure constant dynamic loads:
- Traffic-induced vibrations
- Wind shear
- Thermal expansion and contraction from daily temperature cycles
- Seismic shaking in active fault zones
Over years of service, these repetitive forces can degrade joints, supports, and tension systems. Structural health monitoring allows bridge managers to track stress buildup, spot early fatigue, and schedule targeted maintenance rather than costly full overhauls.
Many modern bridge projects now include SHM as part of original design — but retrofits are increasingly common for aging highway networks.
Dams & Water Infrastructure
Dams hold back enormous forces of water, earth, and hydrostatic pressure — failure is not an option.
Structural health monitoring for dams focuses on:
- Foundation stability
- Subsurface movement
- Cracking in retaining structures
- Leakage detection
- Seismic responsiveness
In extreme events like earthquakes or floods, early warning provided by SHM systems can trigger emergency action plans, limit downstream flooding, and give time for controlled water releases.
High-Rise Buildings
As urban skylines reach higher, structural flexibility becomes a design necessity. But long-term integrity still must be monitored, particularly in seismic zones.
Key factors monitored in high-rise SHM systems include:
- Wind-induced sway patterns
- Seismic response behavior
- Settling or tilting of foundation elements
- Fatigue in high-stress joints
This is especially important for hospitals, data centers, or essential government facilities that must remain operational during and after major events.
The Cost of Waiting
Structural health monitoring isn’t just a technical innovation — it’s a risk management tool.
Failures like the I-35W bridge collapse in Minnesota or Oroville Dam crisis in California highlight the high cost of undetected stress over time. These failures are rarely caused by a single catastrophic event — but by small, accumulating issues that go unnoticed until it’s too late.
Globally, regulators and insurers are now pushing harder for proactive monitoring standards:
- Insurance premiums reduced for actively monitored assets
- Regulatory mandates in many jurisdictions (especially seismic zones)
- Growing public pressure to demonstrate asset safety and accountability
The cost of implementing SHM is almost always far less than the cost of repairing—or replacing—a failed structure.
